Description
◆2U with 24x 2.5” hot-swap SSD tray
◆Hot-swappable PCIe switch board,PSU,FAN
◆Capable of supporting up to 8 head nodes
◆Intelligent enclosure management and configuration
Specification
Form Factor :2U 24bay 2.5”
SSD I/F :SFF8639 with PCIe Gen 3 (8GT/s) x4
PCIe Switch Board :Broadcom PEX9781, 8.0 GT/s 81-Lane PCI Express Gen 3 Switch
Power Supply :Two 800W 80 PLUS Titanium power supplies
Dimension :Rackmount 2U 19”480mm (W) x 88mm (H) x340mm (D)
System cooling :Two 80mm (W) x 80mm (H) x38mm (D) FANs
LEDs indication :SSD Activity(Blue),Present(White) and Fault(Red) LEDs
FAN Fault(Red) LEDs
PSU Fault (Red) LEDs
PCIe port link width (Red) and host port (Blue) LEDs

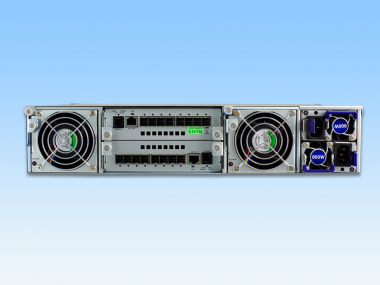

Real I/O per switch board:Two quad SFF-8644 connectors, RJ11 for UART, RJ45 Ethernet
10/100 port, Mute button
System Alarm :Buzzer beeping for critical event(s)
(FAN, PSU, PCIe link Failure, Over Voltage(s)and Temperature(s)
I/O Capability :Upstream bandwidth: PCIe Gen3 x 64, 512 GT/s
Downstream bandwidth: 24bays SSDs with PCIe Gen3 x 4
Serviceability :Hot-Swappable SSD (s), FAN(s), PSU(s),PCIe switch module(s)
LCD Module :4 keys for function selection
16 char x2 lines with white LED backlight
