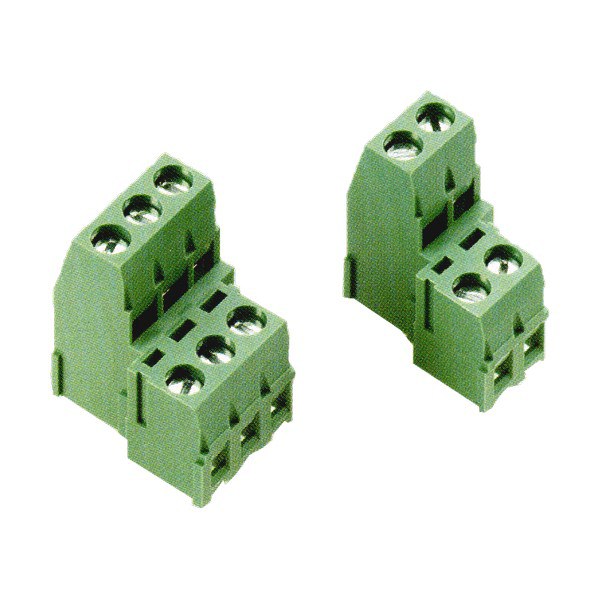

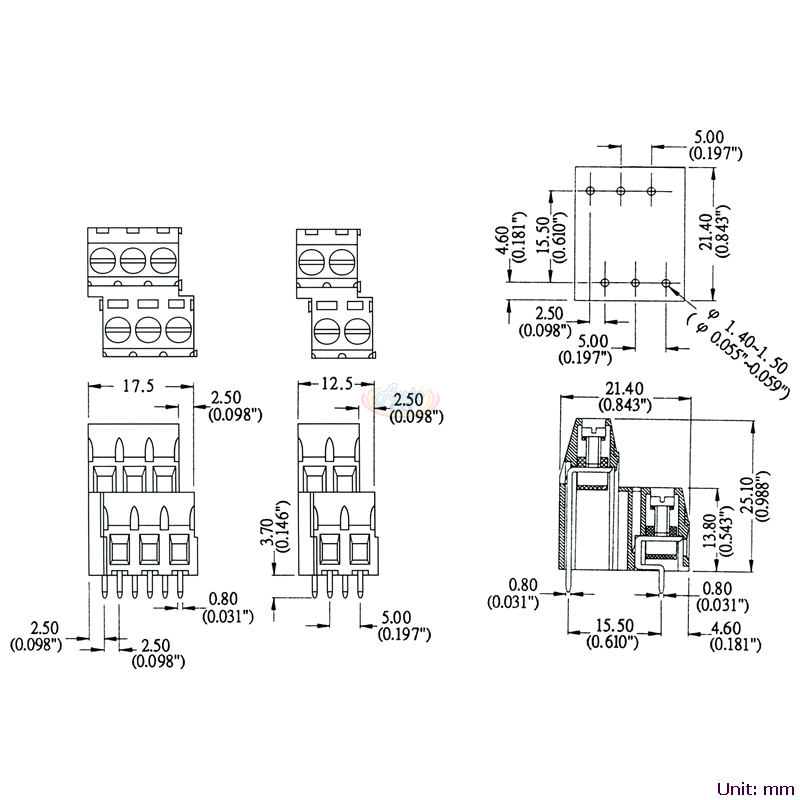

CBP2-HC100 歐式接線端子台，PCB端子台 5mm pitch, 10A 300VAC

1. Model Number: CBP2-HC100
2. Rating: 10A 300VAC
3. Body Material: Plastic NYLON 66, Green
4. Screw: M2.6, Steel, Zine Plated
5. Wire Cage: Brass, 0.7t, Nickel Plated
6. Solder Pin: Brass, 0.8t, Solder Plated
7. Working Temperature: -40˚C to +105˚C
8. Insulation withstand Voltage: AC2000V at 1 min
9. Insulation resistance: 500MΩ or more at DC 500V
10. Wire Range: 22~16 AWG
11. Screw Torque Value: 5kg/cm
12. Poles: 4P & 6P
13. Pitch: 5mm
14. Place of Origin: Taiwan
