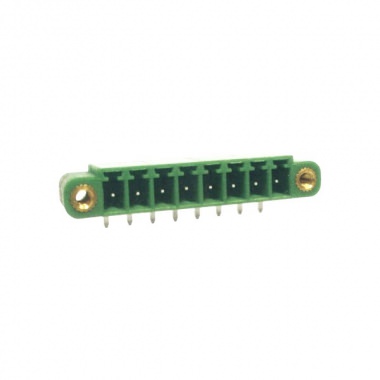

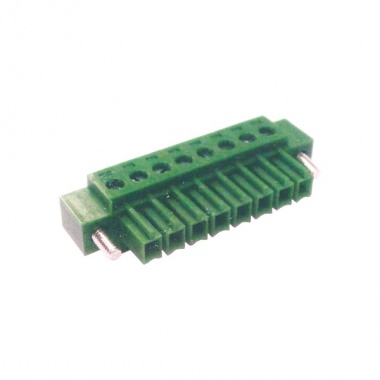

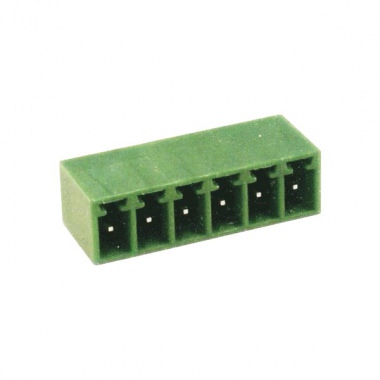

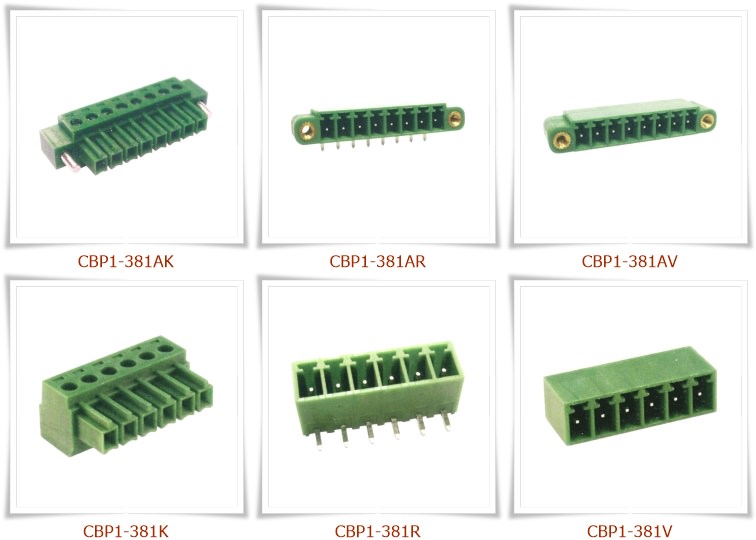

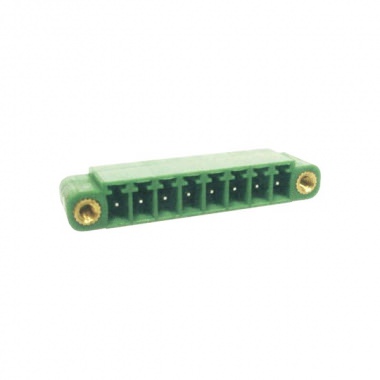

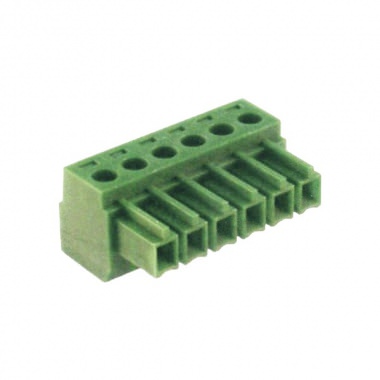

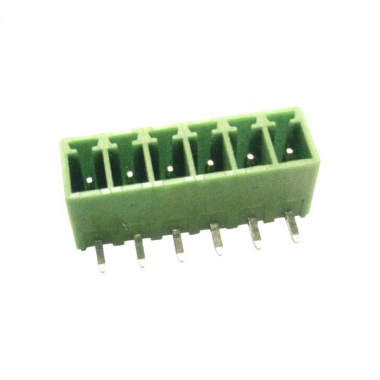

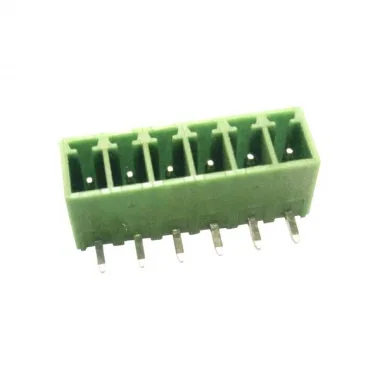

CBP1-381 插拔式接線端子台，PCB端子台 3.81mm pitch, 10A 300VAC

1. Model Number: CBP1-381
2. Rating: 10A 300VAC
3. Body Material: Polyamide 66, Green
4. Contact: Phosphor Bronze, 0.3t, Nickel Plated
5. Screw: M2.0, Steel, Zine Plated
6. Cage clamp: Brass, 0.7t, Nickel Plated
7. Solder Pin: 0.8mm Brass, Tin Plated
8. Working Temperature: -40˚C to +105˚C
9. Insulation withstand Voltage: AC2000V/min
10. Insulation resistance: 500MΩ or more at DC 500V
11. Wire Range: 26~16 AWG
12. Screw Torque Value: 3kg/cm
13. Poles: 2P~16P
14. Pitch: 3.81mm
15. Place of Origin: Taiwan
