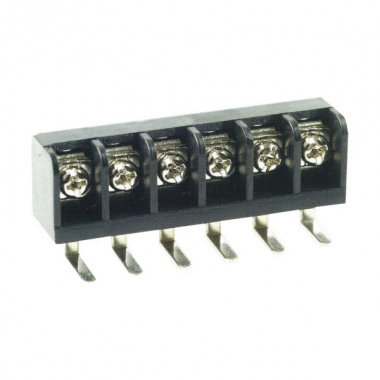

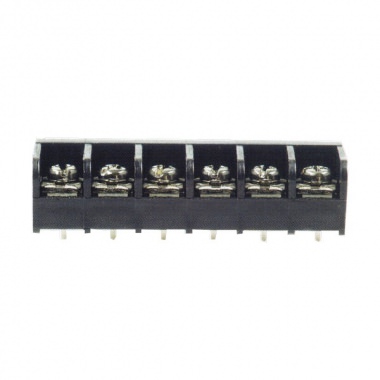

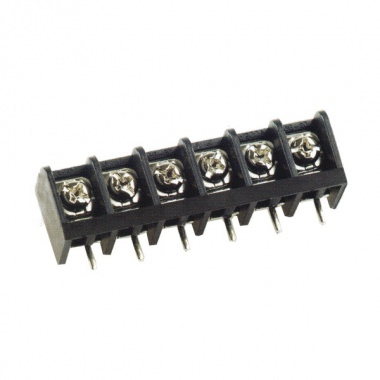

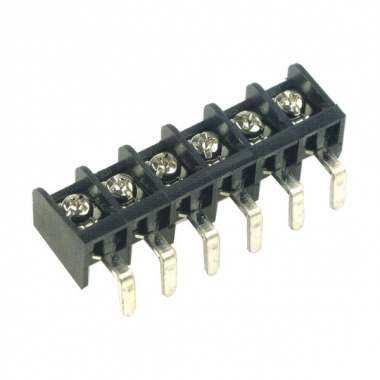

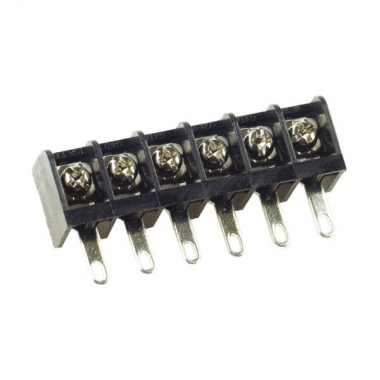

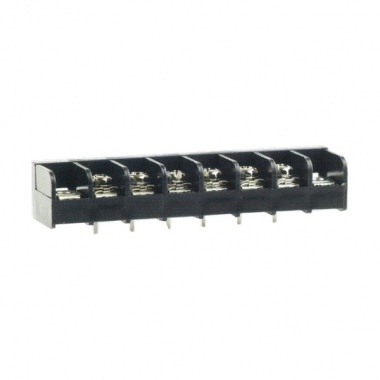

CBP80 後擋板柵欄式接線端子台,PCB端子台 8.25mm pitch, 15A 300VAC
型號: CBP80
規格: 8.25mm pitch, 15A 300VAC
描述: 後擋板柵欄式接線端子台(CBP80系列),PCB端子台,15A 300VAC,使用線徑22~12AWG,腳距為8.25mm pitch,電極P數為2P~32P,螺絲規格為M3鐵鍍鎳,接線簡單,台灣生產製造。

CBP80 後擋板柵欄式接線端子台,PCB端子台 8.25mm pitch, 15A 300VAC

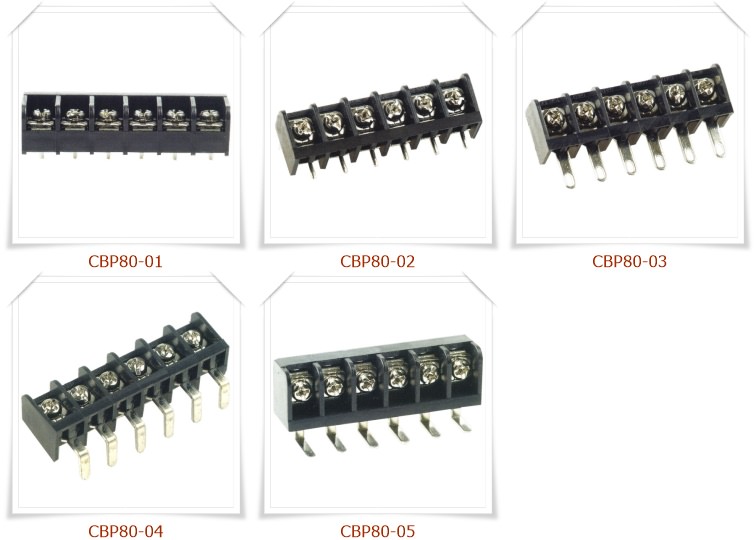

CBP80 後擋板柵欄式接線端子台_PCB端子台



  1. Product Type: Barrier Strip
  2. Barrier Style: Single Row, Tri-Barrier
  3. Model Number: CBP80
  4. Rating: 15A 300VAC
  5. Terminal: Brass, 0.8t, Tin Plated
  6. Body Material: Plastic NYLON 66, Black (UL 94V-0)
  7. Screw: Steel, M3, Nickel Plated
  8. Working Temperature: -40˚C to +105˚C
  9. Insulation withstand Voltage: AC2000V at 1 min
  10. Insulation resistance: 500MΩ or more at DC 500V
  11. Wire Range: 22~12 AWG
  12. Max. Torque Value: 10Kg/cm
  13. Poles: 2P~32P
  14. Pitch: 8.25mm
  15. Place of Origin: Taiwan



CBP80 後擋板柵欄式接線端子台_PCB端子台
