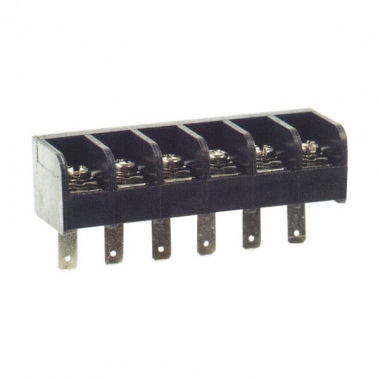

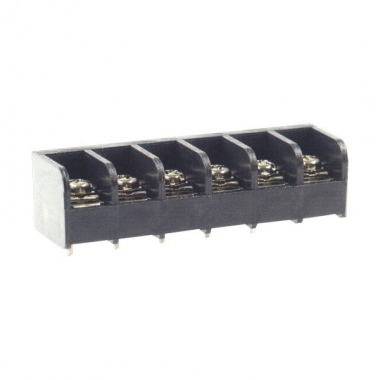

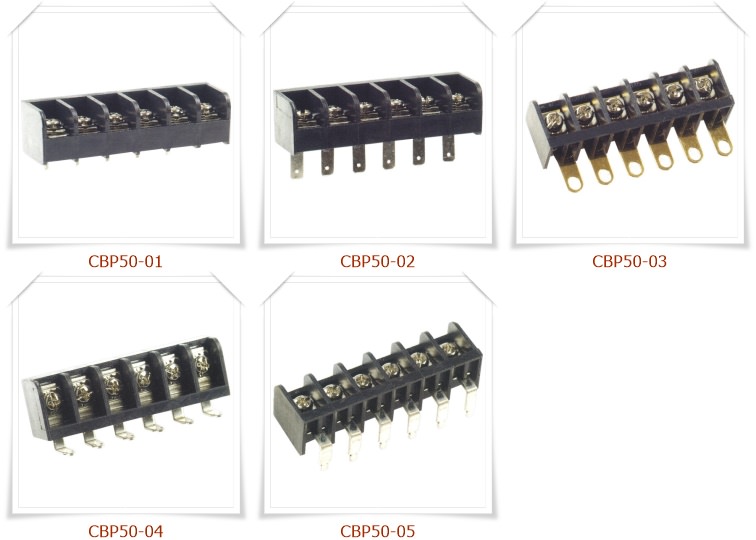

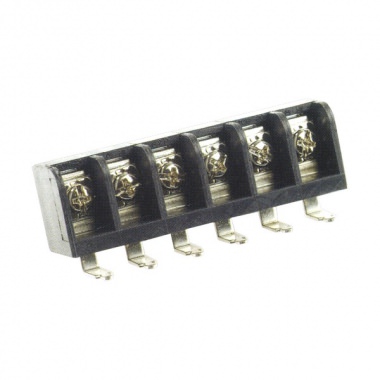

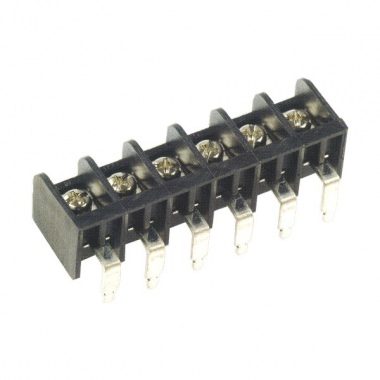

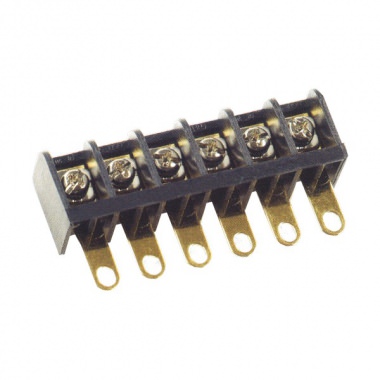

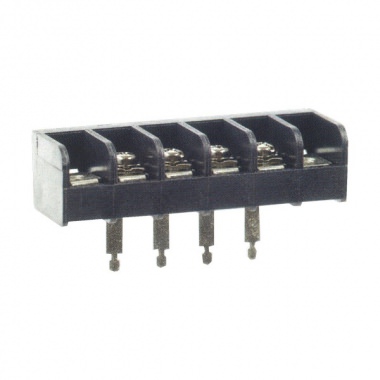

CBP50 後擋板柵欄式接線端子台，PCB端子台 11mm pitch, 15A 300VAC

1. Product Type: Barrier Strip
2. Barrier Style: Single Row, Tri-Barrier
3. Model Number: CBP50
4. Rating: 15A 300VAC
5. Terminal: Brass, 0.8t, Tin Plated
6. Body Material: Plastic NYLON 66, Black (UL 94V-0)
7. Screw: Steel, M4, Nickel Plated
8. Working Temperature: -40˚C to +105˚C
9. Insulation withstand Voltage: AC2000V at 1 min
10. Insulation resistance: 500MΩ or more at DC 500V
11. Wire Range: 22~12 AWG
12. Max. Torque Value: 18Kg/cm
13. Poles: 2P~32P
14. Pitch: 11mm
15. Place of Origin: Taiwan

Related Links: https://www.chengee.com.tw/tw/products/CBP50.html
