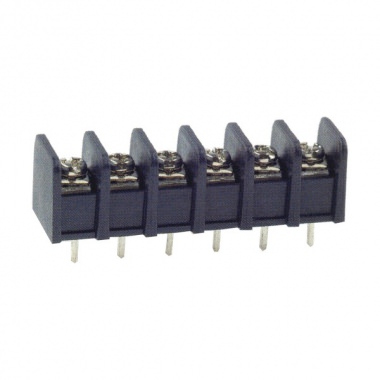

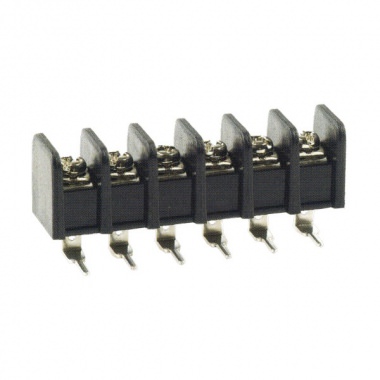

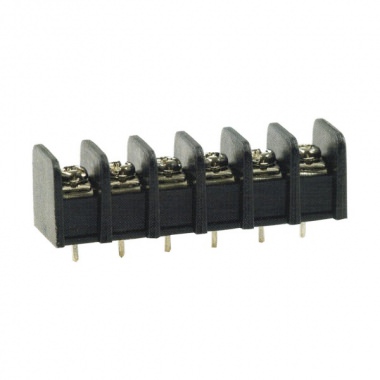

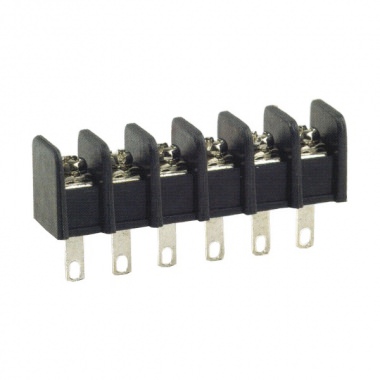

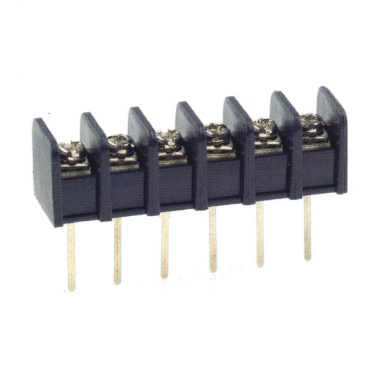

CBP210 柵欄式接線端子台,PCB端子台 8.25mm pitch, 15A 300VAC
型號: CBP210
規格: 8.25mm pitch, 15A 300VAC
描述: 柵欄式接線端子台(CBP210系列),PCB端子台,15A 300VAC,使用線徑22~12AWG,腳距為8.25mm pitch,電極P數為2P~32P,螺絲規格為M3鐵鍍鎳,可加上蓋,台灣生產製造。

CBP210 柵欄式接線端子台,PCB端子台 8.25mm pitch, 15A 300VAC

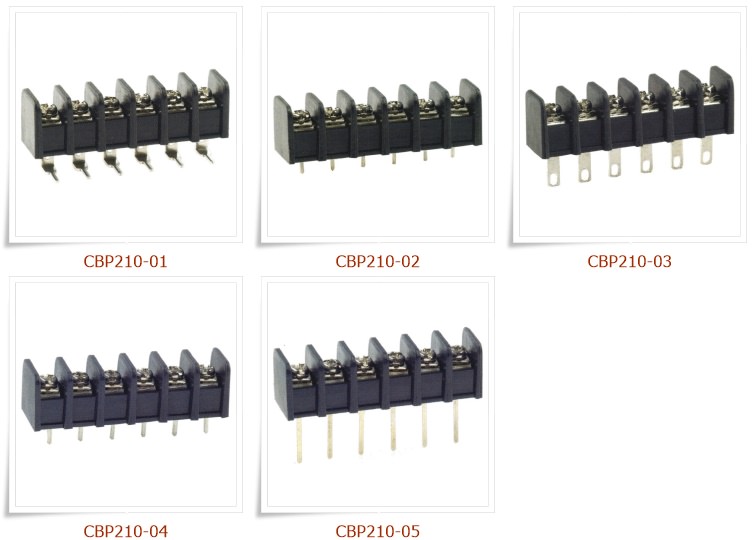

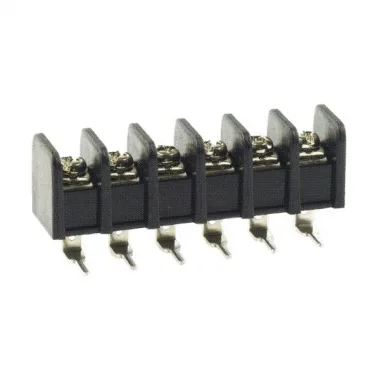

CBP210 柵欄式接線端子台_PCB端子台



  1. Product Type: Barrier Strip
  2. Model Number: CBP210
  3. Rating: 15A 300VAC
  4. Terminal: Brass, 0.8t, Tin Plated
  5. Body Material: Plastic NYLON 66, Black (UL 94V-0)
  6. Screw: Steel, M3, Nickel Plated
  7. Working Temperature: -40˚C to +105˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~12 AWG
  11. Max. Torque Value: 10Kg/cm
  12. Poles: 2P~32P
  13. Pitch: 8.25mm

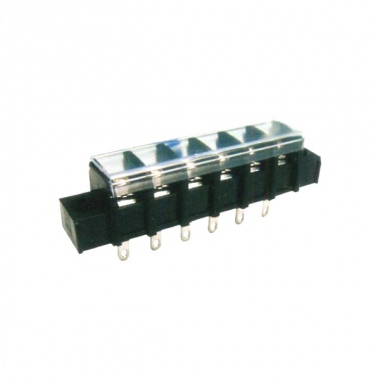

  14. Cover Available
  15. Place of Origin: Taiwan



CBP210 柵欄式接線端子台_PCB端子台
