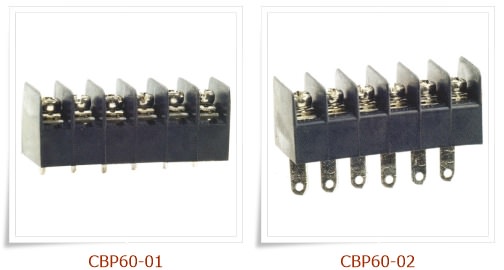

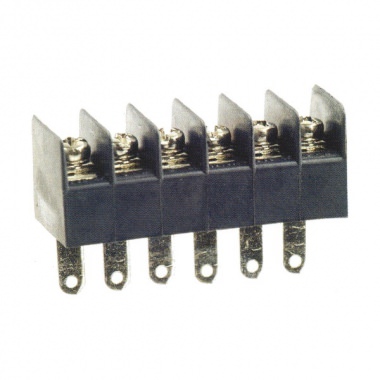

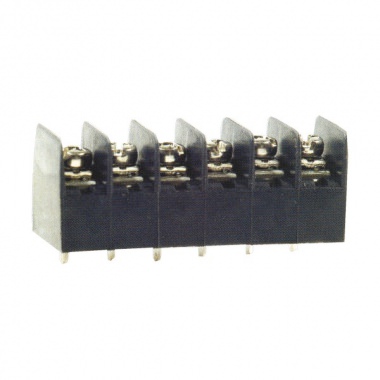

CBP60 柵欄式接線端子台,PCB端子台 6.35mm pitch, 10A 300VAC
型號: CBP60
規格: 6.35mm pitch, 10A 300VAC
描述: 柵欄式接線端子台 CBP60 PCB端子台,10A 300VAC,使用線徑 22~12 AWG,腳距 6.35mm pitch,極數 2P~32P,接線簡單明瞭,台灣生產製造。

CBP60 柵欄式接線端子台,PCB端子台 6.35mm pitch, 10A 300VAC



CBP60 柵欄式接線端子台_PCB端子台



  1. Product Type: Barrier Strip
  2. Model Number: CBP60
  3. Rating: 10A 300VAC
  4. Terminal: Brass, 0.8t, Tin Plated
  5. Body Material: Plastic NYLON 66, Black (UL 94V-0)
  6. Screw: Steel, M3, Nickel Plated
  7. Working Temperature: -40˚C to +105˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~12 AWG
  11. Max. Torque Value: 10Kg/cm
  12. Poles: 2P~32P
  13. Pitch: 6.35mm
  14. Place of Origin: Taiwan



CBP60 柵欄式接線端子台_PCB端子台
