CXS1609034-R08W0.8-F1

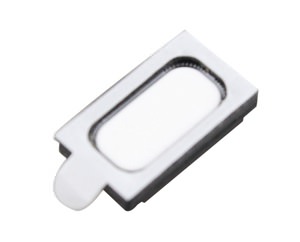

| 型號： | Miniature SPEAKER |

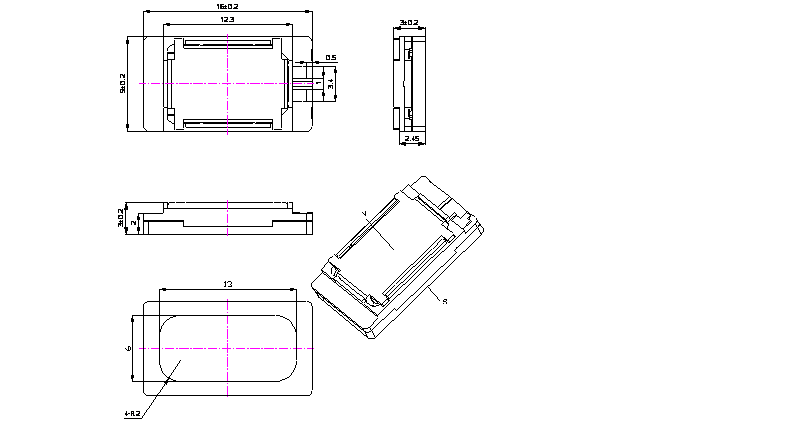

| 規格： | 16*9*3.4mm,8ohm/0.8W |
| 描述： | 彈片式喇叭 薄膜喇叭 超薄喇叭 miniature speaker |
|
CXS1609034-R08W0.8-F1 |
|
| Rated Input Power. | 0.8W |
| Rated Impedance. | 8Ω ± 15% |

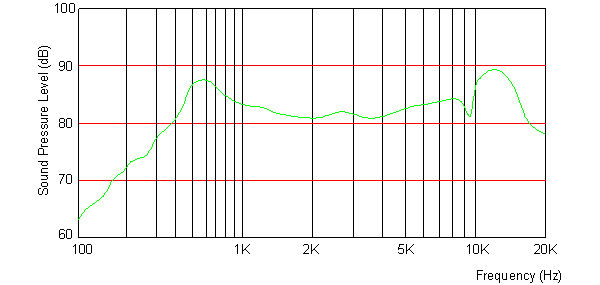

| Sound Pressure Level. | 88.5dB(0.8W0./0.1m) ± 3 dB at 2.0K Hz (in 1.0cc box) |
| Resonance Frequency (Fo). | 550±20%Hz (in free air) 850±20%Hz (in 1.0cc box) |
| Frequency Range. | F0~20kHz. |
