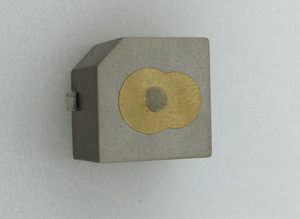

CX1313100C-5V-2400-F
型號: SMD BUZZER
規格: 13*13*10,5VDC,2400Hz
描述: SMD BUZZER Self Drive Magnetic Buzzer mini buzzer 蜂鳴器
No. Item Unit Specification Condition
1 Oscillation Frequency KHz 2.4 ±    0.3
2 Operating Voltage VDC 3~ 7
3 Rated    Voltage VDC 5
4 Current    Consumption mA MAX. 30 at    Rated Voltage
5 Sound Pressure Level dB MIN. 85 at 10cm at Rated Voltage
6 Weight (MAX) gram
7 Housing Material   PPS ( Black )



Unit :mm  Tol: ±0.5
