CX9696050C-5V-2700-F
型號: SMD BUZZER
規格: 9.6*9.6*5.0mm,5VDC, 2700HZ
描述: SMD BUZZER Self Drive Magnetic Buzzer mini buzzer 蜂鳴器
No. Item Unit Specification Condition
1 Oscillation Frequency KHz 2.7 ±    0.3
2 Operating Voltage VDC 2~ 4 3~ 7 8~ 15
3 Rated    Voltage VDC 3 5 12
4 Current    Consumption mA MAX. 30 MAX. 30 MAX. 30 at    Rated Voltage

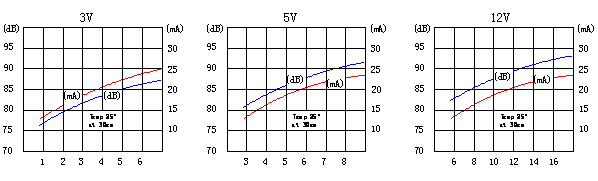

5 Sound Pressure Level dB MIN. 80 MIN. 83 MIN. 85 at 10cm at Rated Voltage
6 Weight (MAX) gram
7 Housing Material   PPS ( Black )



Unit :mm  Tol: ±0.5
