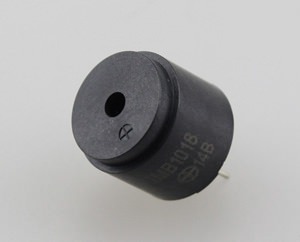

CX1614C
型號: 電磁式蜂鳴器
規格: OD16*14mm,12VDC,Freq.:2.3KHz
描述: BUZZER, self Drive Magnetic Buzzer
No. Item Unit Specification Condition
1 Oscillation Frequency KHz 2.3 ±    0.3 4.0 ±    0.3
2 Operating Voltage VDC 8~ 15
3 Rated    Voltage VDC 12
4 Current    Consumption mA MAX. 30 at    Rated Voltage
5 Sound Pressure Level dB MIN. 90 at 10cm at Rated Voltage
6 Weight (MAX) gram
7 Housing Material   PPO ( Black )

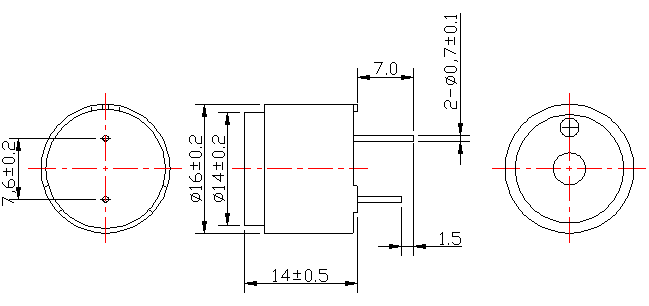

Unit :mm  Tol: ±0.5
