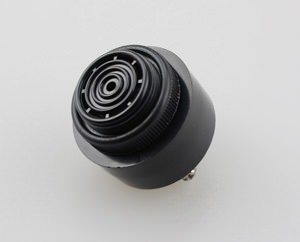

CXP4330C-DC
型號: 壓電式蜂鳴器
規格: OD43*30mm,24VDC,Freq.:2.9KHz
描述: PIEZO BUZZER,Self Drive Piezo Buzzer
tion Frequency Hz 2900±500 square wave
2 Operating Voltage Vdc 5 ~28
3 Rated    Voltage Vdc 24
4 Current    Consumption mA MAX.20 at    Rated Voltage
5 Sound Pressure Level dB MIN. 90 at 30cm    at Rated Voltage
6 Housing Material   ABS ( Black )
7 Tone Nature   Fast Pulse

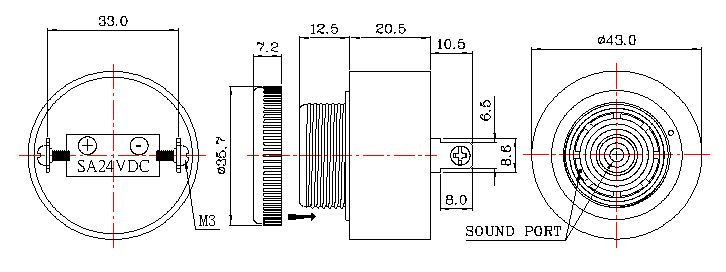

C. APPEARANCE DRAWING

Unit :mm  Tol: ±0.5
