Technical Data (技術資料)
Housing (外殼) |
Fire Retardant High Temperature Thermoplastic
(阻燃高溫熱塑性塑膠)
|
---|---|
94V-2 grade (94V-2 阻燃等級) |
|
Insert (導電體) |
Brass (銅)
|
Voltage / Ampere (電壓/電流) |
250V / 2A
|
Voltage / Ampere (UL) (電壓/電流) |
120Vac / 125VL / 3A
|
Temperature (溫度) | |
Working (工作溫度) |
-40℃ to 100℃
|
Short Period (瞬間溫度) |
140℃
|
Summary (概要)

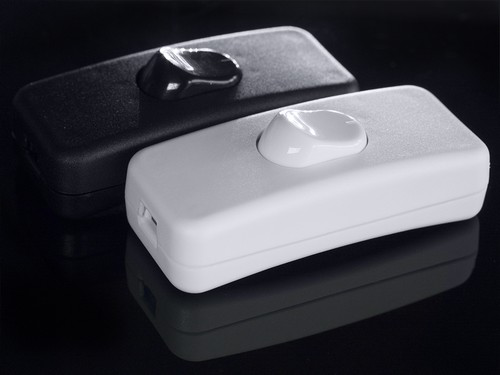

-Single and double pole on/off switch (單極或雙極開關)
-For two or three wire cords (0.75 mm2 cords) (可選擇雙線或三線,可裝0.75 mm²軟線)
-Excellent electrical contact (良好導電性能)
-Suitable for table lamp
-Black,white and gold as standard color (標準色為黑色,白色及金色)
