Push Wire Connectors
| NO： | P02-M3 / P02-M3J |

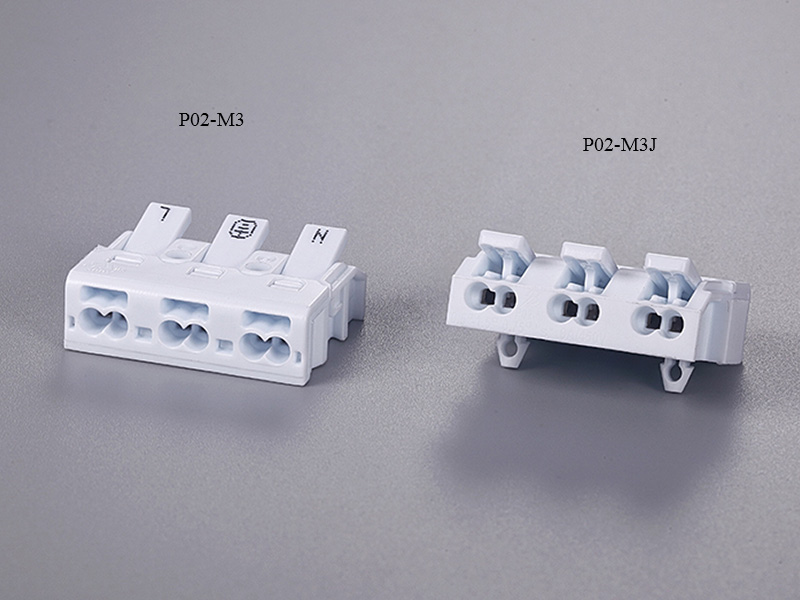

| Item No. | P02-M3 P02-M3J | ||
| Electrical Data | |||
| IEC/EN | UL | ||
| Rated Voltage (V) | 450 | 300 | |
| Rated Current (A) | 9 | 9 | |
| Ambient Temperature | Polyamide 66 | T110 | 105℃ |
| Connection Data | |||
| IEC/EN | UL | ||
| Cross Section | Solid conductor | 0.5-1.5mm² | AWG 16-20 |
| Stranded conductor | 0.5-1.5mm² | AWG 16-20 | |
| Flexible conductor | 0.5-1.5mm² | - | |
| Strip length (mm) | 8-10 | ||
| Means of connection | push in | ||
| Rewirable | √ | ||
| Number of terminals | multiway | ||
| Number of connection points | 3*2 | ||
| Means of Fixing | |||
| screw fixed / fixing snap | |||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Compatible Products | |||
| Junction boxes | TB-02 | ||
| Packing Quantity (pcs/carton) | |||
| 1000 | |||

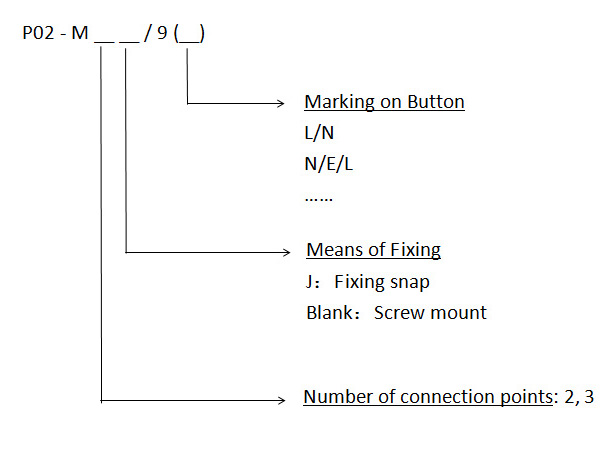

Product Code
