Pluggable Connectors
| NO： | PS2A-3Z |
| Item No. | PS2A-3Z | ||
| Electrical Data | |||
| IEC/EN | |||
| Rated Voltage (V) | 250 | ||
| Rated Current (A) | 16 | ||
| Ambient Temperature | Polyamide 66 | 90℃ | |
| Number of terminals | multiway | ||
| Number of connection points | 3 | ||
| Materials | |||
| Insulation Materials | Designation | Polyamide 66 | |
| Flammability class | UL 94V-2 | ||
| Compatible Products | |||
| Pluggable connector | PS2A-N3, PS2A-3, PS2A-W3 | ||

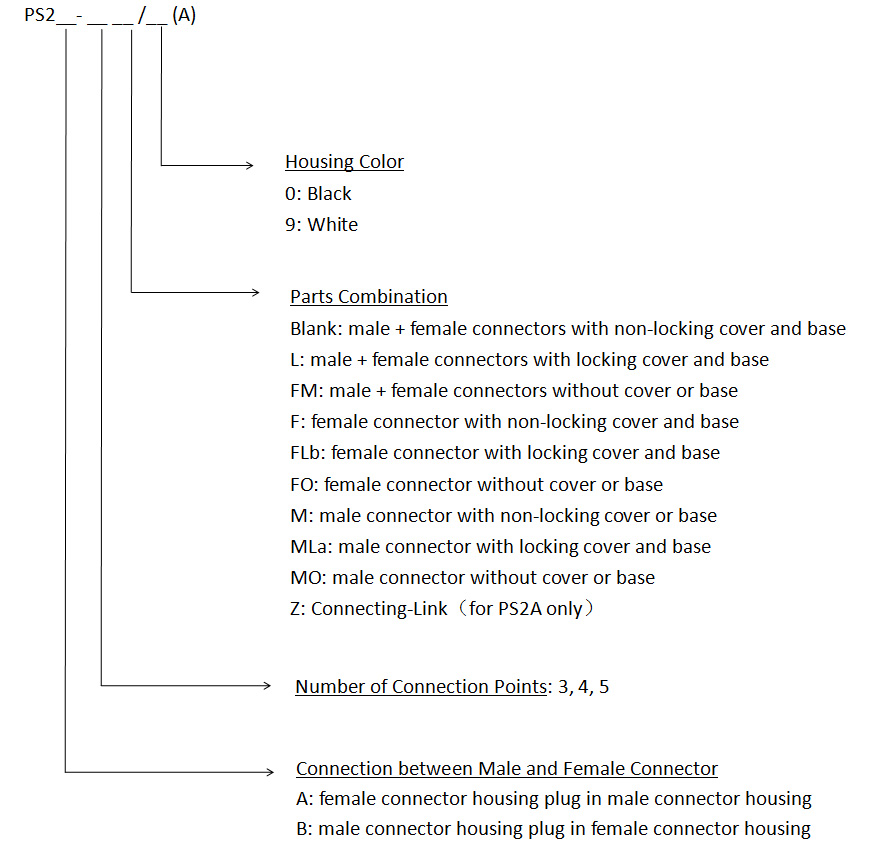

Product Code
