Downlight ( embedded ) / 36W
NO: LD0ACW036-004
Specifications: 36 Watt / Embedded / Square Type

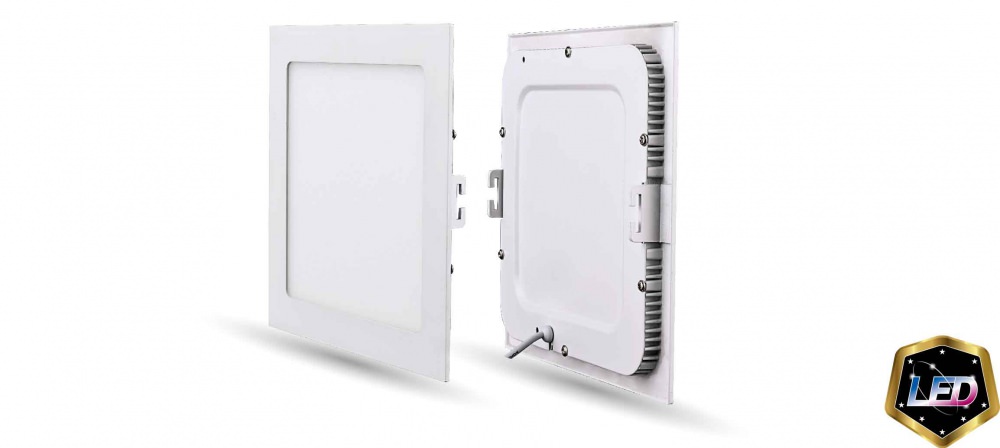

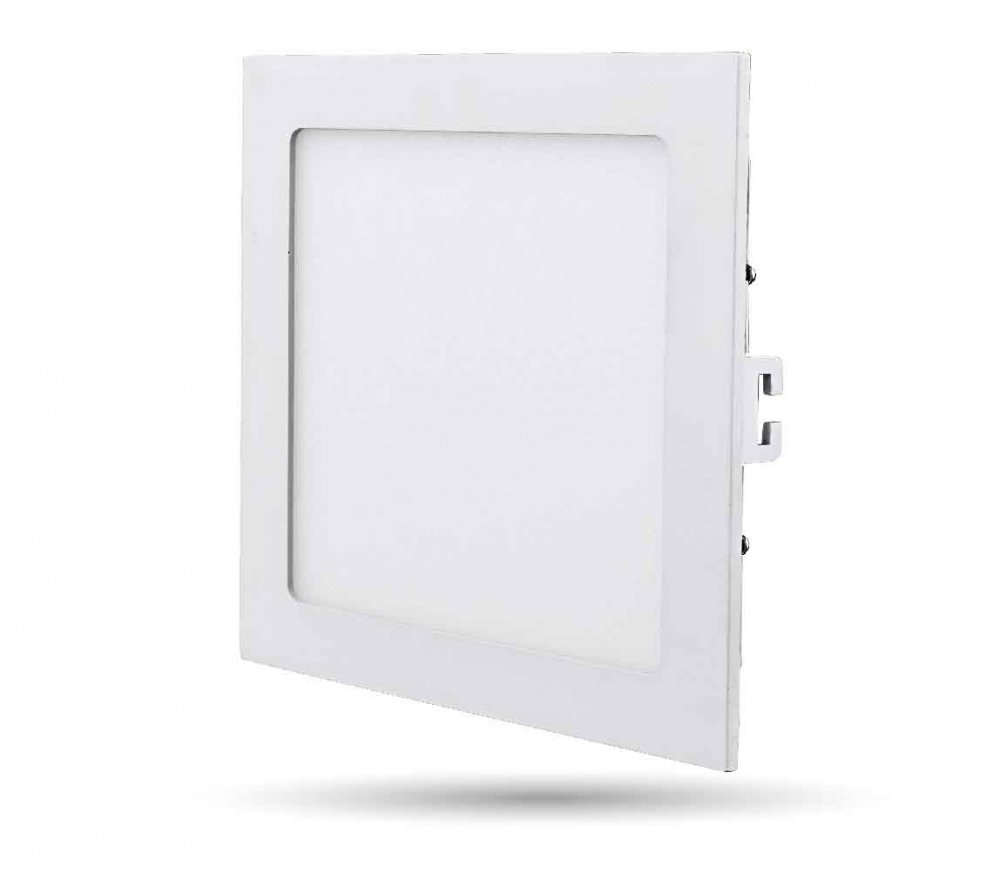

Down-light (embedded) / 36 W


-------------------------------------------
-------------------------------------------

Over 35,000 hours of lifetime, longer  than traditional fluorescent lamp
-------------------------------------------

Reduce the cost of low energy
expenditure
-------------------------------------------

Fastest and easiest way to upgrade existing lamp to LED technology
-------------------------------------------

Concise design and ideal for indoor lighting
------------------------------------------
-------------------------------------------

-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------

Mercury free
-----------------------------------------------------------------------------------

No UV or IR radiation
-----------------------------------------------------------------------------------

Over 35,000 hours with extra-long life
-----------------------------------------------------------------------------------

Retrofit to existing fluorescent down-light fixture
-----------------------------------------------------------------------------------

Lowers site maintenance costs by reducing re-lamp frequency
    ------------------------------------------------------------------------------------
------------------------------------------------------------------------------------

-------------------------------------- -------------------------------------
-------------------------------------- -------------------------------------

Home

Department store
-------------------------------------- -------------------------------------

Office

Hotel, Motel
-------------------------------------- -------------------------------------

Restaurant

Museums
-------------------------------------- -------------------------------------

Shop

Hospital
-------------------------------------- -------------------------------------
-------------------------------------- -------------------------------------

-------------------
Model No. : LD0ACW036-004

Input Voltage : 85 - 265 Vac
Wattage : 36 W
  Light Effi. : 70 - 75 lm/W
Chips : SMD 2835
PF : > 0.5
CRI : > 75
CCT : 3000K, 4000K, 5000K, 6000K
LED Q'ty :  - pcs
Dimension : L 500 x W 500 x H 25 mm
Hole Size : L 485 x W 485
Lamp Base : open wire
Material : Aluminium
  ------------------
  ------------------

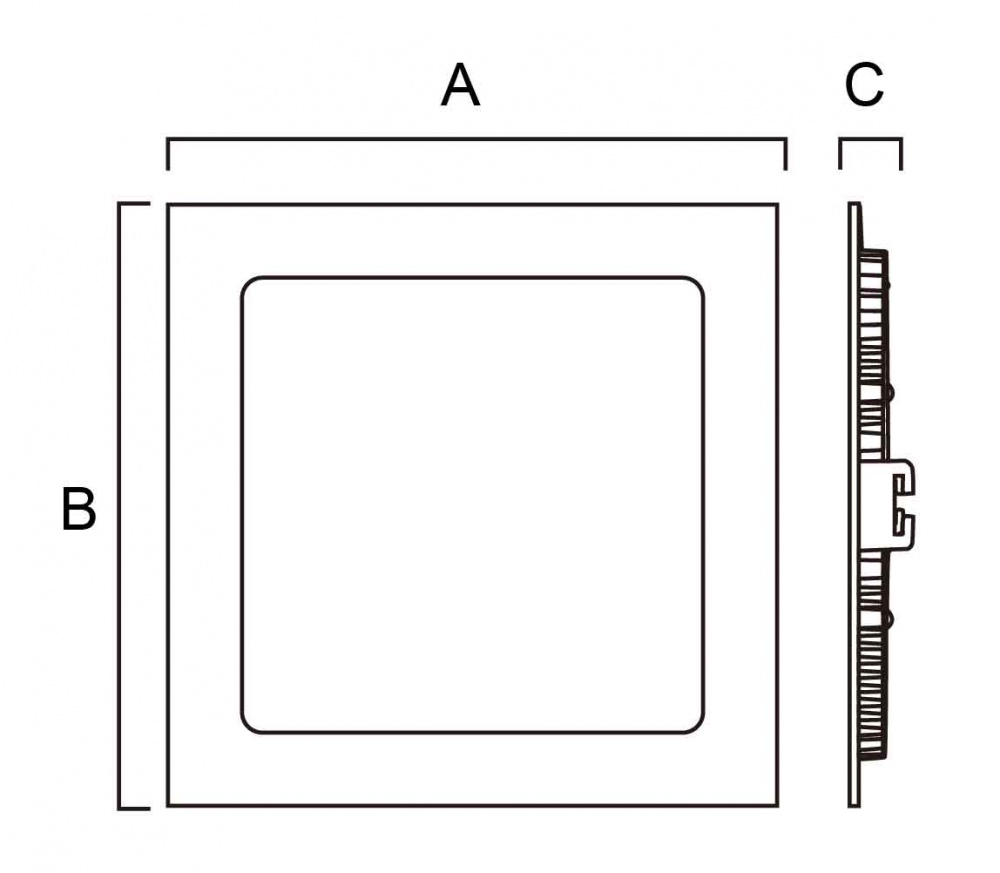

A= 500mm, B= 500mm, C= 25mm
