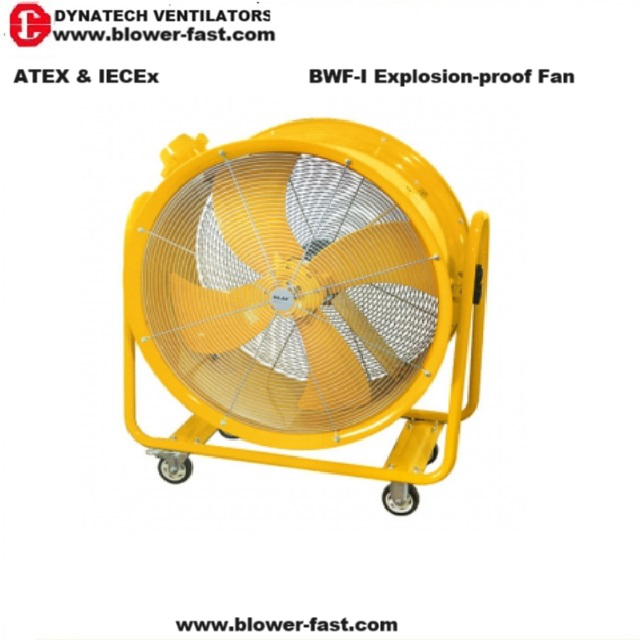

BWF Hand-Push Explosion-Proof Fans with wheels
NO: BWF-50/60/70/80/90/105
Specifications: Diameters: 500, 600, 700, 800, 900, 1050 mm
Description: Hand-Push Wheeled Explosion-Proof Ventilators

BWF Hand-Push Explosion-Proof Fans with wheels

Specifications:

型   號

Model No.

口  徑

Diameter

mm (inch)

電   壓

Voltage

(V)

頻   率

Freq.

(Hz)

轉  速

Speed

(rpm)

功  率

Power

(Watts)

風 量

Flow Rate

(m³/min.)

靜 壓

Static

(Pa)

噪 音

Noise

dB(A)

BWF-45 450 (18) 110/220~240 50/60 1400/1720

700/750

110/125 350/410 70

BWF-50

500 (20)

110/220~240

50/60

1400/1720

900

150/165

400/460

73

BWF-60

600 (24)

110/220~240

50/60

1400/1720

1500/1800

240/260

480/540

77

BWF-70

700 (28)

110/220~240

50/60

1400/1720

2200

310/330

580/650

79

BWF-80

800 (32)

110/220~240

50/60

960/1120

2200/2400

420/450

500/550

74

BWF-80

800 (32)

380/440

50/60

1400/1720

3000

450/480

580/650

81



Features:

* The explosion-proof  industrial fans apply in the condition of explosion gas compound with

   factory II type Grade A, B and the temperatue level of T1~T4.

* They are widely used for ventilation and sunstroke in office, oil, military industry, chemical  industry,

   medicine, metallurgy, etc.

* The explosion-proof certificate is approved.

* The explosion-proof grade marks as below:

* The impellers are made of aluminum alloy, with strong points reflect as operate steadily,

   beauty appearance, rational structure, etc.

Applications
* The explosion-proof hand-push exhaust fan can safely be used in gas stations, chemical industries, metallurgy plants,

   and for any flammable or explosive environment.

* When used with anti-static ducting, it is ideal for cleaning air-tight tanks.
