Specifications: | Continue band sealer |
Description: | Tabletop & Standard Continue band sealer |
Specifications:
|
|

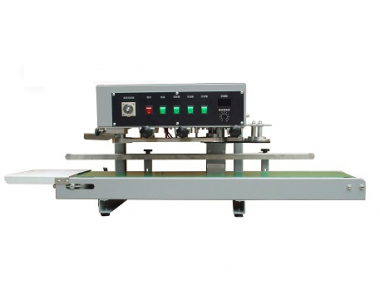

Tabletop band sealer(Vertical) |

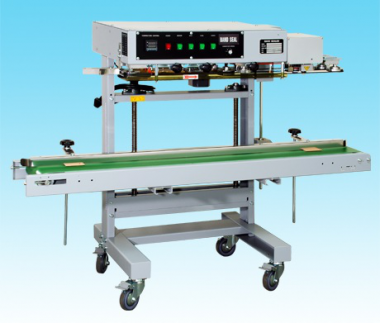

Standard band sealer(Vertical) |
Model No. |
900 |
900V |
901V |
Voltage/Ampere |
1 phase 100V,110V,120V,220V,240V |
1 phase 100V,110V,120V,220V,240V |
1 phase 100V,110V,120V,220V,240V |
Machine size |
1050 x 520 x 390 mm |
1150 x 440 x 470(670) mm |
1530X640X1410(mm)
|
Sealing width |
5mm or 10mm |
5mm or 10mm |
5mm or 10mm |
Sealing and conveyor speed |
8.0M/min |
8.0M/min |
10.0M/min |
Bag total thickness |
0.26-0.50 mm |
0.26-0.50 mm |
0.06-0.5mm |
Conveyor width |
200mm |
200mm |
200mm |
Conveyor height adjusting range |
High:40mm, Front and rear: 40mm |
230mm |
500mm |
Conveyor loading weight |
2 kgs |
2 kgs |
10 kgs |
Characteristics:
Tabletop band sealer Outer housing: powder coating.
(option for Stainless steel for other model)
- Packing material: aluminum bag or PE bag... any kinds of heat sealable material.
- The variable conveyor belt speed is adjustable to accommodate materials of various thickness. material.
- Sealing is performed by thermostatic control.
- Tabletop band sealer Additional options:
Counter
Date coding machine
Adjustment of sealing speed.
Model 901V Suitable for large packaging and Horizontal sealer products that cannot be sealed
Applications:
- Tabletop band sealer Available for: foods, chemicals and hardware parts. Vertical type Idea for Powder or Liquid sealing.
