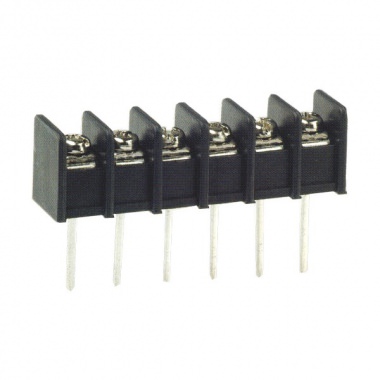

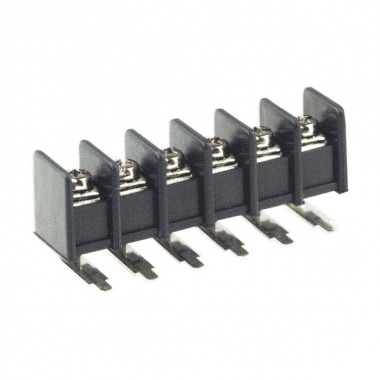

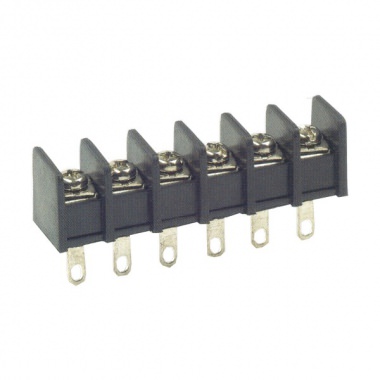

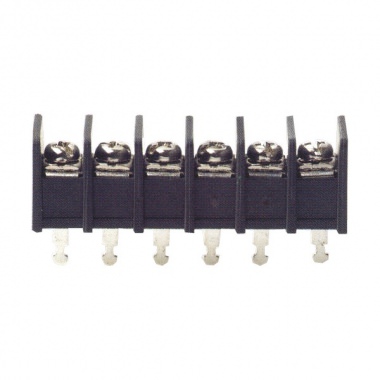

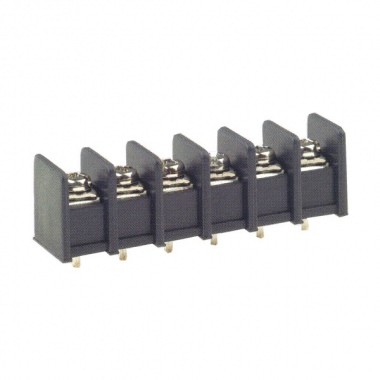

CBP20 Barrier Strip Terminal Blocks, 9.5mm pitch. 15A 300VAC
NO： CBP20
Description： CBP20 Series Barrier Strip Terminal Blocks, 9.5mm pitch, 15A 300VAC, Accepts wire range 22~12 AWG, Cover Available, 2- to 36-Pole Single row.
  Barrier Terminal BlocksBarrier StripsPCB Terminal BlocksTerminal StripTerminal Blocks

CBP20 Barrier Strip Terminal Blocks 9.5mm pitch, 15A 300VAC



CBP20 Barrier Strip Terminal Blocks



  1. Product Type: Barrier Strip
  2. Model Number: CBP20
  3. Rating: 15A 300VAC
  4. Terminal: Brass, 0.8t, Tin Plated
  5. Body Material: Plastic NYLON 66, Black (UL 94V-0)
  6. Screw: Steel, M3.5, Nickel Plated
  7. Working Temperature: -40˚C to +105˚C
  8. Insulation withstand Voltage: AC2000V at 1 min
  9. Insulation resistance: 500MΩ or more at DC 500V
  10. Wire Range: 22~12 AWG
  11. Max. Torque Value: 12Kg/cm
  12. Poles: 2P~32P
  13. Pitch: 9.5mm

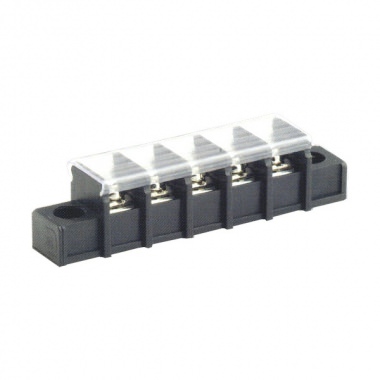

  14. Cover Available
  15. Place of Origin: Taiwan



CBP20 Barrier Strip Terminal Blocks
