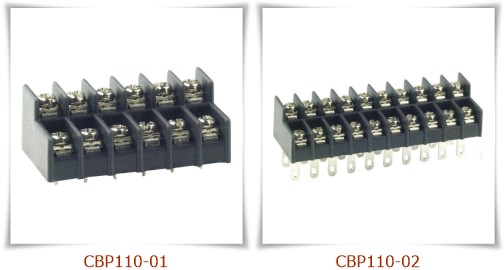

CBP110 雙層接線端子台，PCB端子台 8.25mm pitch, 15A 300VAC

1. Product Type: Barrier Strip
2. Model Number: CBP110
3. Rating: 15A 300VAC
4. Body Material: PA66, Black
5. Terminal: Brass, 0.8t, Tin Plated
6. Screw: Steel, M3, Nickel Plated
7. Working Temperature: -40˚C to +105˚C
8. Insulation withstand Voltage: AC2000V at 1 min
9. Insulation resistance: 500MΩ or more at DC 500V
10. Wire Range: 22~12 AWG
11. Max. Torque Value: 10Kg/cm
12. Poles: 2x2P~2x26P
13. Pitch: 8.25mm
14. Place of Origin: Taiwan

Related Links: https://www.chengee.com.tw/tw/products/CBP110.html
